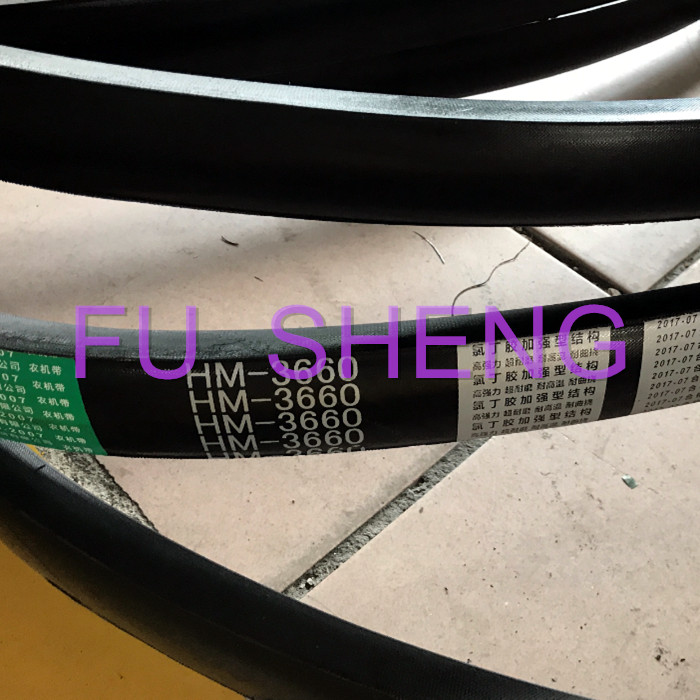

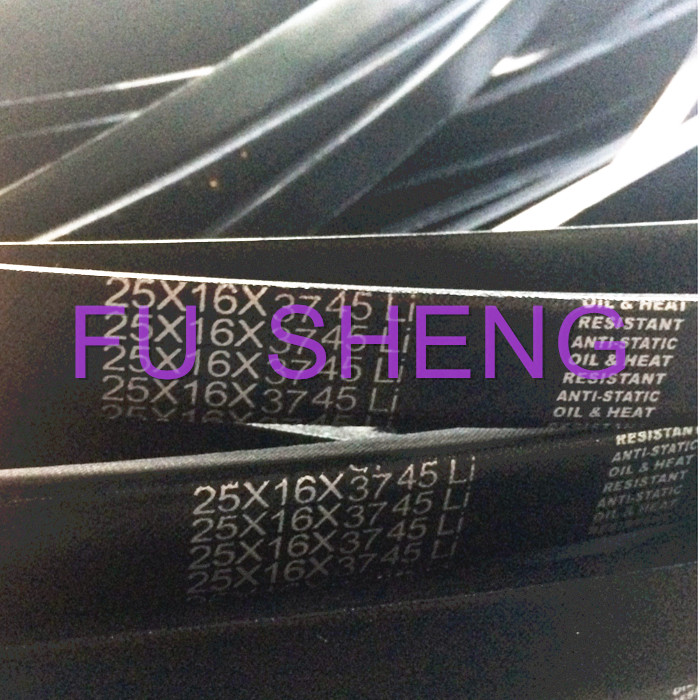

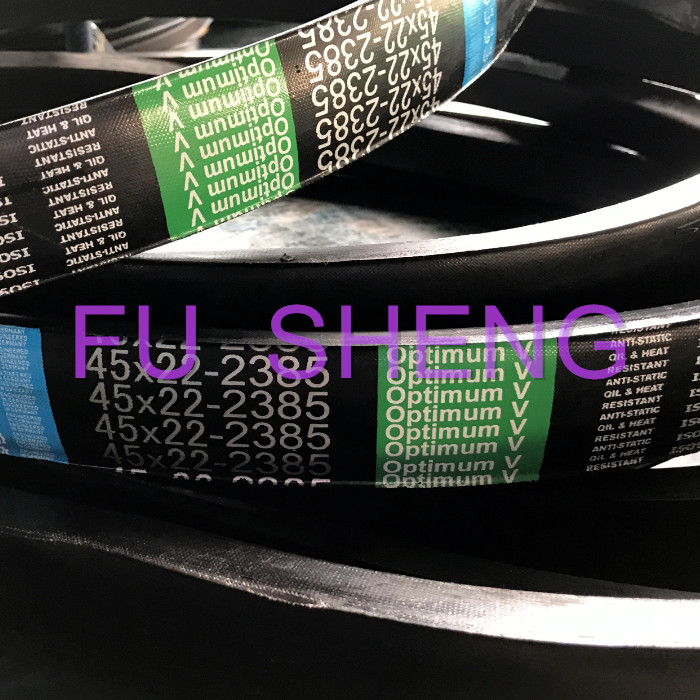

Agricultural Wrapped V Belt
Our Production Range:
Belt series:HI,HJ,HK,HL,HM
Agricultural Wrapped V Belt
our company,s agricultural V belt reinforced fiber loaded compound with polyester cord tension members guarantee long endurance at heavy loads.

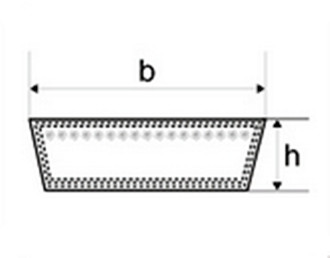

Sections
| Type | Top Width
mm |
Height
mm |
Length Range
mm |
Angle |
| HI | 25.4 | 12.7 | 1880-8000 | 32° |
| HJ | 31.8 | 15.1 | 1900-17000 | 32° |
| HK | 38.1 | 17.5 | 1880-8000 | 32° |
| HL | 44.5 | 19.8 | 1900-5000 | 32° |
| HM | 50.8 | 22.2 | 1880-8000 | 32° |
Properties and advantages
Exceptional high transverse stiffness which ensures long belt life
High-horsepower capacity
Temperature range from -40℃ to +80℃
Static conductive to ISO1813
Oil,heat,ozone,and abrasion resistant
Applications
Farming equipment,i.e harvester
Structure
Outside fabric: Polyester cotton canvas
Tensile memeber: Polyester cord,Kelvar cord
Top rubber: NR, CR
Buffer Rubber: NR, CR
Bottom Rubber: NR, CR
