Banded Cogged V belt
Our Production Range:
Raw edge V belt series:RAX,RBX(RHB)
Cogged edge narrow V belt series:R3VX,R5VX

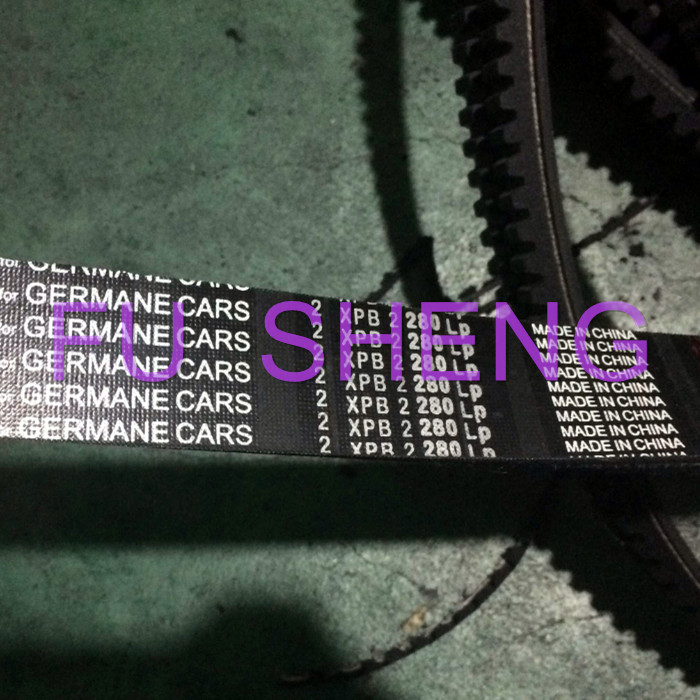

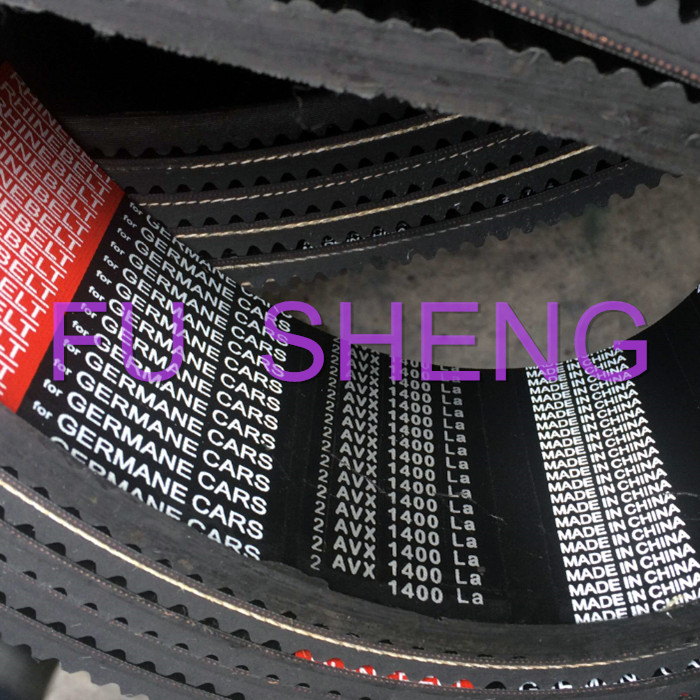

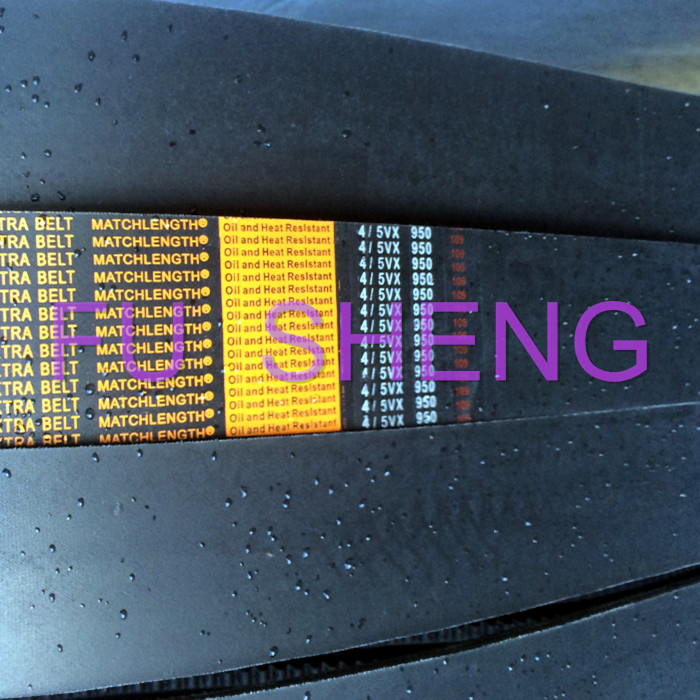

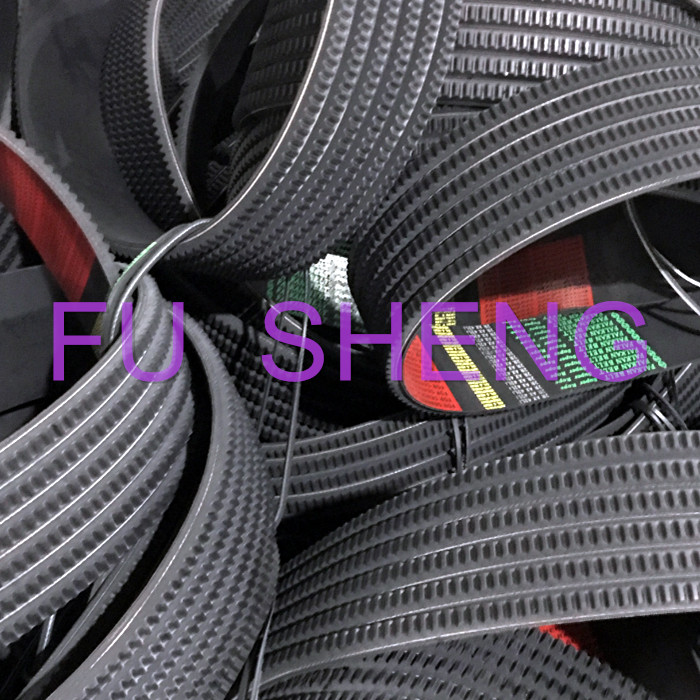

Banded Cogged V belt
Cogged banded V belt can be produced for large drives
Sections one

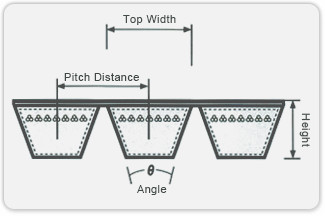

| Type | Top Width
mm |
Pitch
mm |
Single Belt Height
mm |
Height
mm |
| RAX | 13 | 15.88 | 8 | 10 |
| RBX | 17 | 19.05 | 10 | 13 |
| RCX | 22 | 25.40 | 13 | 17 |
| RDX | 32 | 36.53 | 19 | 21 |
Sections two
| Type
|
Top Width
mm |
Pitch
mm |
Single Belt Height
mm |
Height
mm |
| R3VX | 9.7 | 10.3 | 7.9 | 9.7 |
| R5VX | 15.7 | 17.5 | 13.5 | 15.7 |
| R8VX | 20.9 | 23.4 | – | 20.9 |
| RXPZ | 25.4 | 28.6 | 23 | 25.4 |
| RXPA | ||||
| RXPB | ||||
| RXPC |
Properties and advantages
Joined construction for problem drives
High grade engineered rubber
Longer service life
Higher Capacity
Temperature range from -50℃ to +120℃
Static conductive to iso 1813
Oil,heat ozone,and abrasion resistant.
Structure
Outside fabric: Polyester cotton canvas
Tensile member: Polyester hard cord
Top rubber: CR
Buffer Rubber: CR
Bottom Rubber: CR
