Class V Belt
Our Production Range:
Belt series:K,Z,A,B,C,D,E,F
Classical V Belt
Our company,s Classical V belts are often produced according to standard DIN2215 for multitude application possibilites.That’s multiple V belt drives where high shock load and heavy-duty loads are encountered.

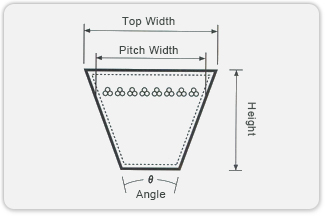

Sections
| Type | Top Width
mm |
Pitch Width
mm |
Height
mm |
Length Range
mm |
Angle
|
| Z/M | 10 | 8.5 | 6 | 343-2478 | 40° |
| A | 13 | 11 | 8 | 381-9000 | 40° |
| B | 17 | 14 | 11 | 457-17000 | 40° |
| C | 22 | 19 | 14 | 700-17000 | 40° |
| D | 32 | 27 | 19 | 1900-17000 | 40° |
| E | 38 | 32 | 23 | 3000-17000 | 40° |
| F | 50 | / | 30 | 5000-17000 | 40° |
Special sections
| Type | Pitch Width
mm |
Height
mm |
Angle
|
| 3L | 9.8 | 5.6 | 40° |
| 4L | 12.7 | 8 | 40° |
| 5L | 16.8 | 10.5 | 40° |
| Y | 6 | 4 | 40° |
| MF | 9.5 | 8 | 40° |
| K | 8 | 6 | 40° |
| D22 | 14 | 7.5 | 40° |
| D24 | 14 | 8 | 40° |
| CD | 25 | 16 | 40° |
| D32 | 32 | 16 | 40° |
| D20 | 20.5 | 12.5 | 40° |
Properties and Advantages
Multiple special designs
Equal power transmission
High loads, low elongation and long service life
Excellent operational safety
Temperature range from -55℃ to +70℃
Static conductive to ISO1813
Oil,heat,ozone,and abrasion resistant.
Applications
Crushers,compressors
Blending system
Combine harvesters,compressors,choppers
Lawnmowers,scarifiers
Structure
Outside fabric: Polyester cotton canvas
Tensile memeber: Polyester cord,Kelvar cord
Top rubber: NR, CR
Buffer Rubber: NR, CR
Bottom Rubber: NR, CR
