Cogged Narrow V Belt
Our Production range:
Belt series:XPZ,XPA,XPB,XPC,
3VX(9N),5VX(15N),8VX(25N)
Cogged Narrow V BELT
Our company,s Cogged narrow v belt can be produced for length range from 535mm to 3550mm. It,s ants narrow profile perfect designed for high shock loading on short centers and small diameters.

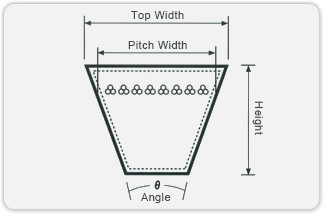

Sections
| Type | Top Width
mm |
Pitch Width
mm |
Height
mm |
Length Range
mm |
Angle |
| XPZ | 10 | 8 | 8 | 535-4550 | 40° |
| XPA | 13 | 11 | 10 | 535-4550 | 40° |
| XPB | 17 | 14 | 14 | 535-4550 | 40° |
| XPC | 22 | 19 | 18 | 535-4550 | 40° |
| 3VX | 9.5 | – | 8 | 535-4550 | 40° |
| 5VX | 16 | – | 13.5 | 535-4550 | 40° |
| 8VX | 25.4 | – | 23 | 535-4550 | 40° |
Properties and Advantages
Narrow section saves more efficiency
Greater horsepower than classical belt
High grade engineered rubber
Longer service life
Fewer tension loss
Temperature range from -50℃to +120℃
Static conductive to ISO1813
Oil, heat, ozone, and abrasion resistant.
Applications
Compressors, fans, soil compactors
Pumps, wood working machines
High performance saws, special machines
Lathes and drills, grinders
Structure
Outside fabric: Polyester cotton canvas
Tensile member: Polyester hard cord
Top rubber: CR
Buffer Rubber: CR
Bottom Rubber: CR
