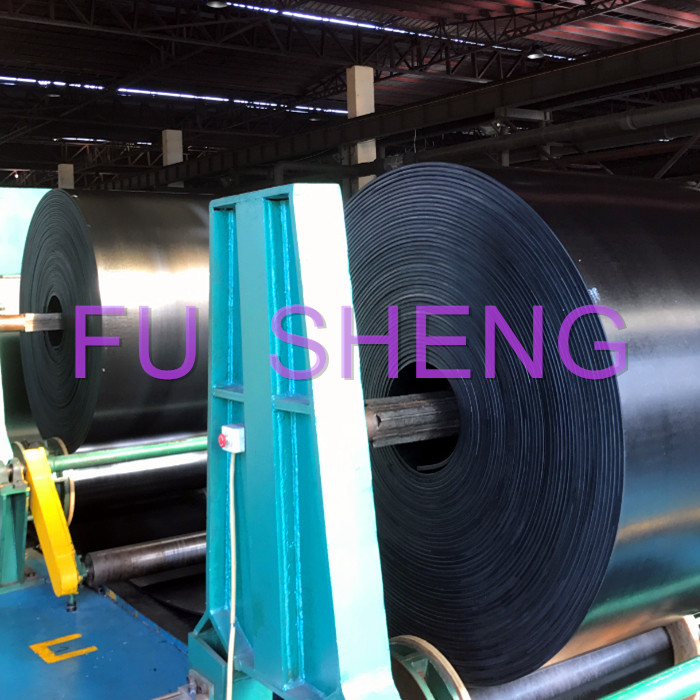

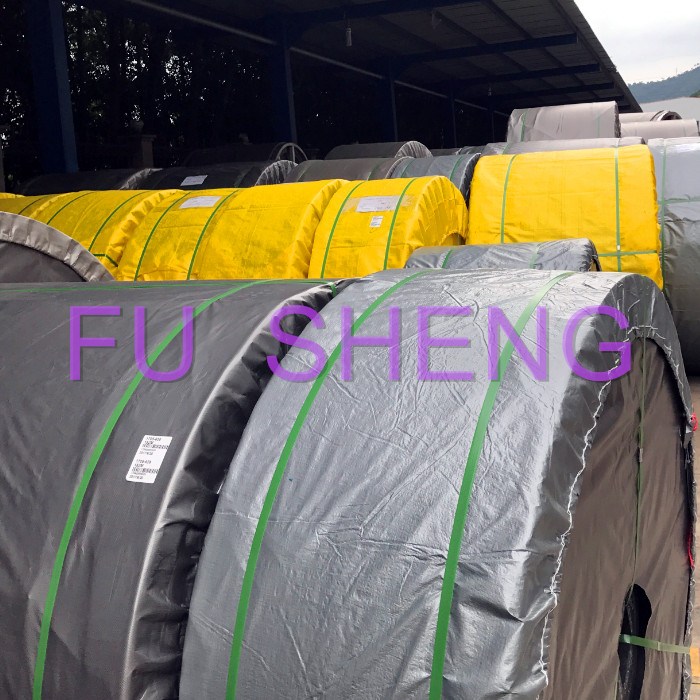

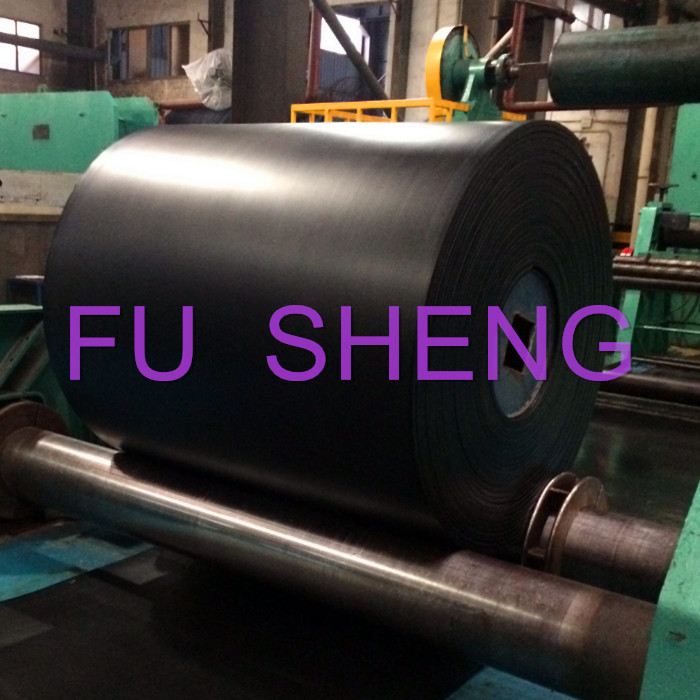

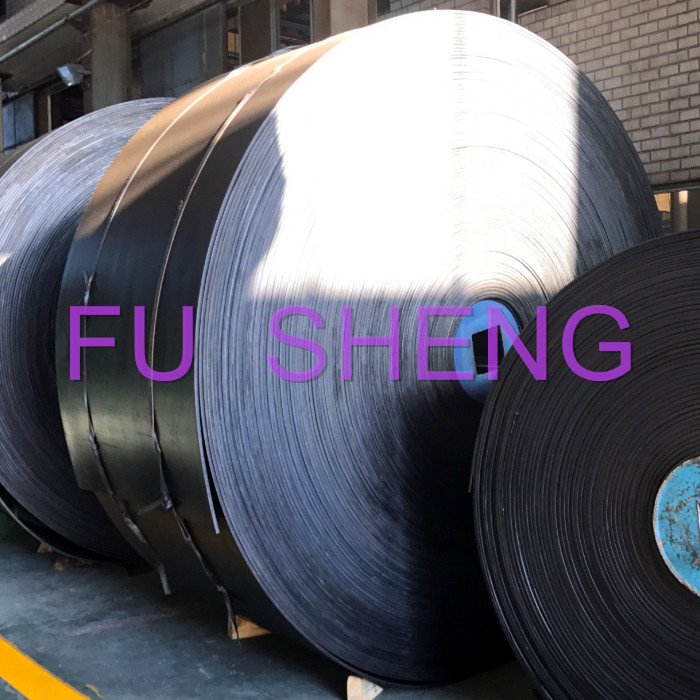

Cotton Conveyor Belt
Our Production Range:
Belt width:200mm－3000mm
Cover rubber strength:8MPA－25MPA
Cotton, Polyester Cotton conveyor belt
Cotton canvas is woven by cotton fibers both in warp and in weft, its elongation is relatively low, it is good in mechanical fastening and adhesion with rubber. Cotton conveyor belt has relatively small deformation under high temperature conditions, suitable for short-distance and light-load transportation of materials. Polyester cotton conveyor belt is the upgraded product of cotton conveyor belt, and its tension resistant body is woven by polyester cotton fibers in warp and cotton fibers in weft. Its comprehensive physical and mechanical characteristics are obviously better than that of cotton conveyor belt, especially the belt body is thinner and lighter, the belt has better shock resistance and thus the belt has better use function and can reduce energy and material consumption for users. it is suitable for medium, short-distance and medium-load transportation of materials.
Specification and technical data of multi-ply cotton, polyester cotton conveyor belt:
| Fabric type |
Fabric structure |
Fabric specs |
Ply thickness (mm/P) |
(N/mm) Strength series |
(mm) Cover thickness |
Width mm |
Length m |
||||||
| Warp | Weft | 2ply | 3 ply | 4ply | 5ply | 6ply | Upper | Lower | |||||
| Cotton (CC) |
Cotton (C) |
Cotton (C) |
CC-56 | 1.10 | 112 | 168 | 224 | 280 | 226 | 2-8 | 0-4.5 | 400-2500 | <=300 |
| Polyester Cotton (TC) |
Polyester Cotton (TC) |
Cotton (C) |
TC-70 | 1.0 | 140 | 210 | 280 | 350 | 420 | 1.5-8 | 0-4.5 | 400-2500 | <=300 |
over properties of the belts:
| Cover grade
|
Tensile strength >= |
Elongation >= |
Abrasion >= |
Change rate of tensile strength and elongation after aging |
| Mpa | % | mm3 | % | |
| Light (L)
|
15 | 350 | 200 | -30~+30 |
| 10 | 300 | 250 |
Adhesion and elongation of the belt:
| Belt carcass |
Adhesive strength | Elongation | |||
| Between piles N/mm |
N/mm Between rubber and carcass |
Longitudinal Elongation at break %>= |
Longitudinal elongation
%<= |
||
| Rubber thickness
<=1.5mm |
|||||
| Cotton and T/C canvas | >=2.70 | >=2.4 | 10 | 4 | |
