Hexagonal Belt
Our Production Range:
Belt series:HAA,HBB,HCC
Hexagonal Belt
Our company,s Hexagonal Belts, also called as Double V Belts,are designed for use on drives with one or more reverse bends and for transmitting power from both sides of belt.

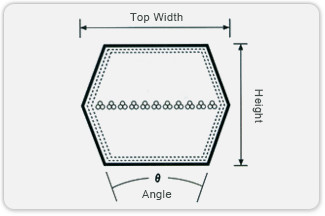

Sections
Type | Top Width
mm |
Height
mm |
Length Range
mm |
AA/HAA | 13 | 10 | 1800-8000 |
BB/HBB | 17 | 13 | 1800-9500 |
CC/HCC | 22 | 17 | 2400-9500 |
Properties and Advantages
Dual-sided classical profile.
Excellent operational safety
High-horsepower capacity
Temperature range from -30℃to +80℃
Static conductive to ISO1813
Oil, Heat, ozone, and abrasion resistant.
Applications
Law and Garden Equipment
Agitators, Mixers
Mule Drives
Crushers
Conveyors
Structure
Outside fabric: Polyester cotton canvas
Tensile member: Polyester cord,Kelvar cord
Top rubber: NR, CR
Buffer Rubber: NR, CR
Bottom Rubber: NR, CR
