Narrow Wrapped V Belt
Our Production Range:
Belt series:SPZ,SPA,SPB,SPC,3V(9N),5V(15N),8V(25N)
Narrow Wrapped V BELT
Our company,s narrow V belts are produced according to DIN7753 for compact,high horsepower drives and high shock loading on short centers and small diameters

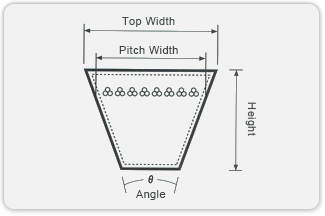

Sections
Type | Top Width
mm |
Pitch Width
mm |
Height
mm |
Length Range
mm |
Angle |

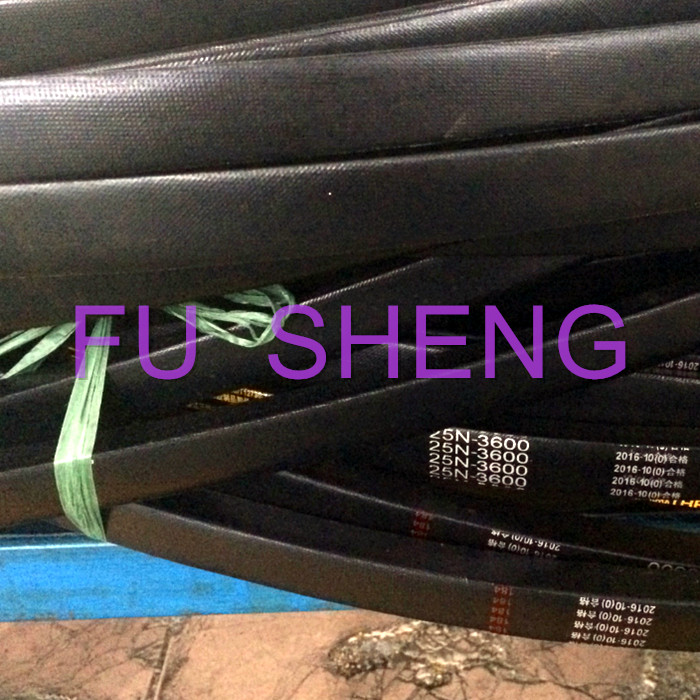

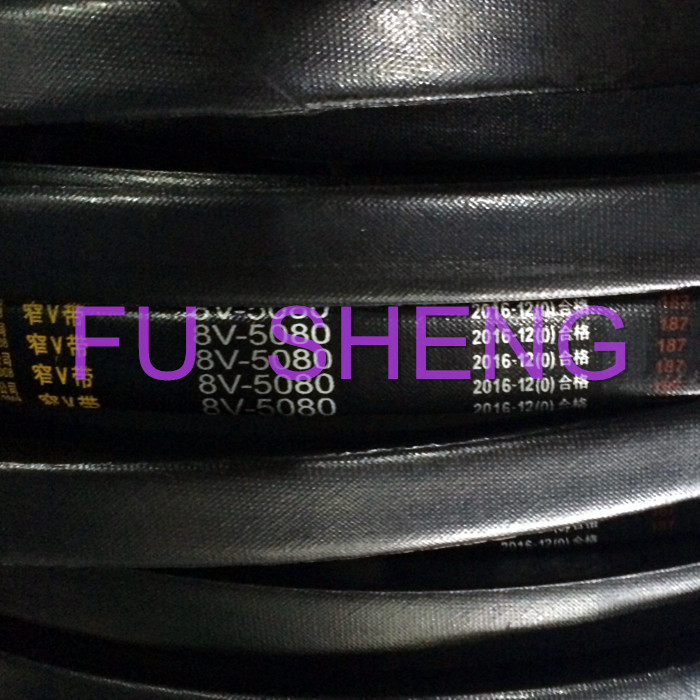

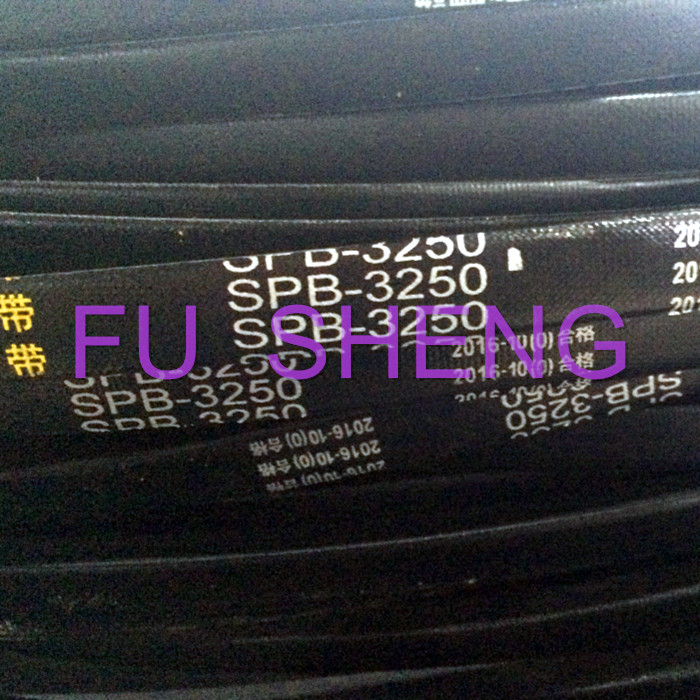

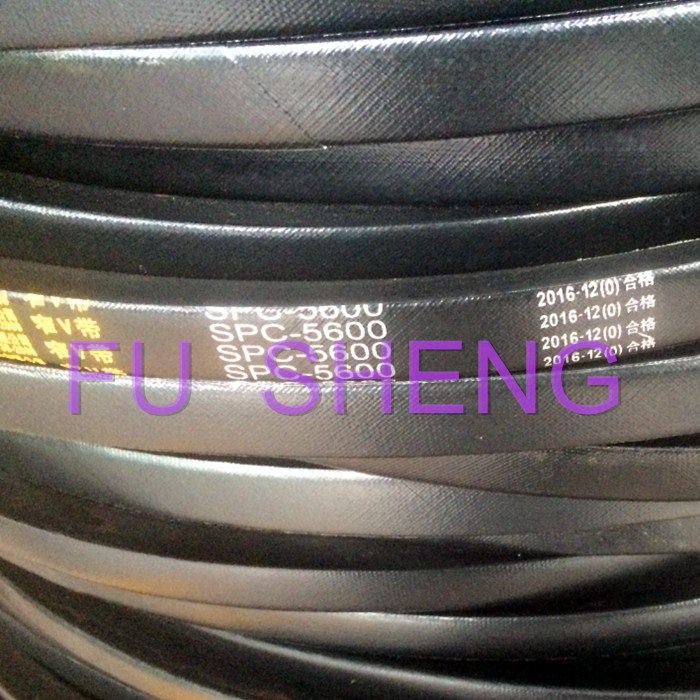

3V/(9N) | 9.5 | / | 8 | 375-9000 | 40° |
5V/(15N) | 16 | / | 13.5 | 795-17000 | 40° |
8V/(25N) | 25.5 | / | 23 | 2400-17000 | 40° |
SPZ | 10 | 8 | 8 | 375-9000 | 40° |
SPA | 13 | 11 | 10 | 475-9000 | 40° |
SPB | 17 | 14 | 14 | 750-17000 | 40° |
SPC | 22 | 19 | 18 | 1350-17000 | 40° |
Properties and Advantages
Multiple special designs
Equal power transmission
Excellent operational safety
Suitable for heavy duty drives with limited space
Narrow profile provides saving through efficiency,above 95%
50-100% higher than classical v belt in transmission power
Temperature range from -55℃ to +80℃
Static conductive to ISO1813
Oil,heat,ozone,and abrasion resistant.
Applications
Crushers,compressors
Blending system
Combine harvesters,compressors,choppers
Lawnmowers,scarifiers

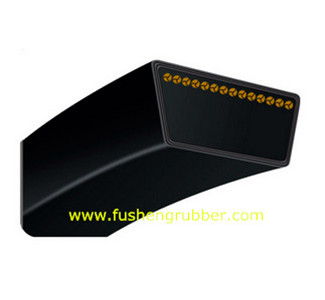

Structure
Outside fabric: Polyester cotton canvas
Tensile member: Polyester cord,Kelvar cord
Top rubber: NR, CR
Buffer Rubber: NR, CR
Bottom Rubber: NR, CR
