Poly Rib V Belt
Our Production range:
Belt series:PH,PJ,PK,PL,PM,DPK
Poly Rib V Belt
Poly rib V belt is ideal for high speed ratio drives with short distances,and it,s quite compact with limited vibration

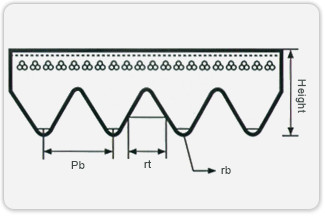

Sections
| Type | Pb | Height
mm |
No.of Ribs | Length Range
mm |
Angle of Rib
|
| PH | 1.6 | 3 | 2-55 | 535-4550 | 40° |
| PJ | 2.34 | 4 | 2-37 | 535-4550 | 40° |
| PK | 3.56 | 4-6 | 2-24 | 535-4550 | 40° |
| PL | 4.7 | 10 | 2-18 | 535-4550 | 40° |
| PM | 9.4 | 17 | 2-9 | 535-4550 | 40° |
Properties and advantages
More power in less space
Friction and wedge advantages for V ribbed section
High grade engineered rubber
Longer service life
Fewer tension loss
Temperature range from -50℃ to +120℃
Static conductive to iso 1813
Oil,heat ozone,and abrasion resistant
Applications
Milling machines and lathes,textile machines,spindle drives
Paper machines,fan drives
Washing machine,tumble drivers
Exercise equipment
DIY equipment
Structure
Outside fabric:polyester cotton canvas
Tensile member:polyester hard cord
Top rubber:CR
Buffer rubber:CR
Bottom rubber:CR
