Raw Edge Cogged V Belt
Our Production Range:
Belt series:ZX,AX,BX,CX,DX,10*8X

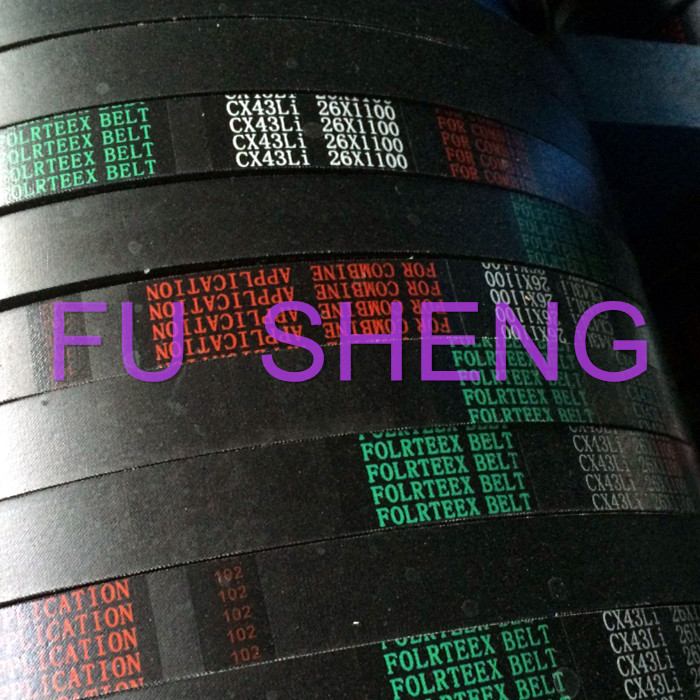

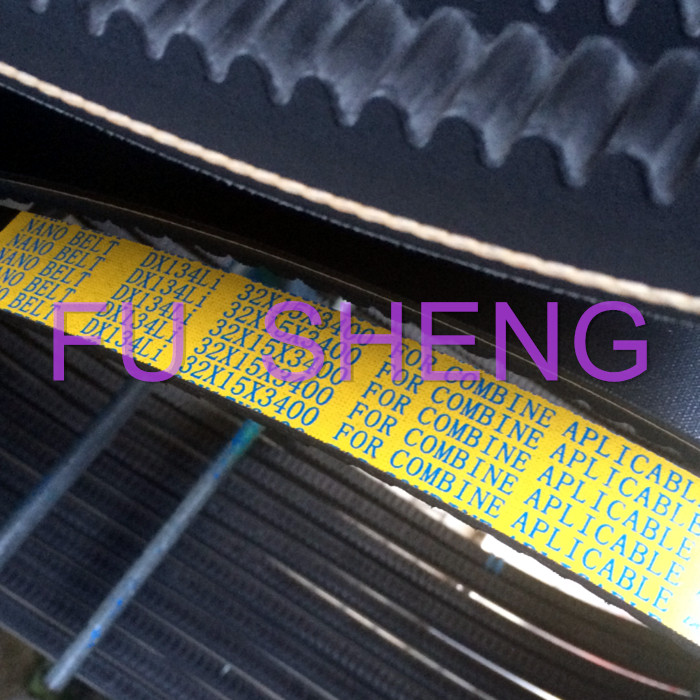

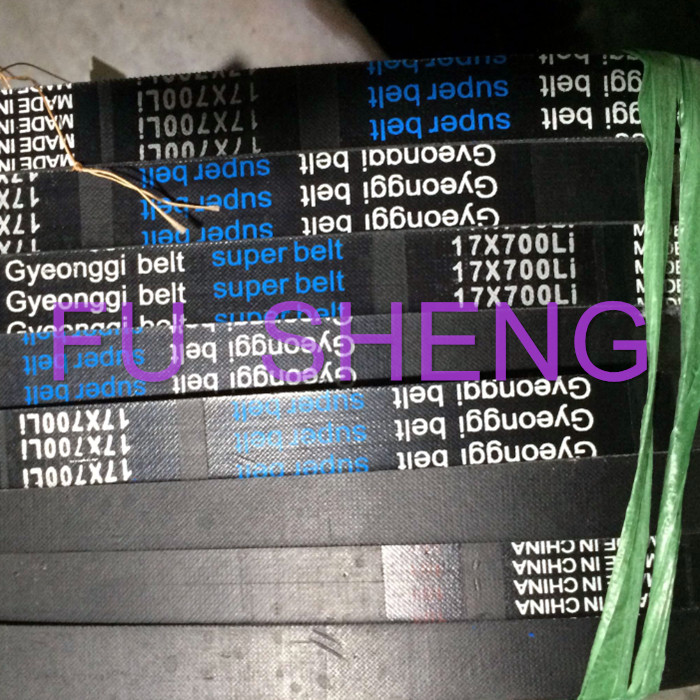

Raw Edge Cogged V Belt
Raw edge cogged V belt and raw edge laminated V belt both can be produced or extra fabric to be added as customers designation for tough,small sheave,and high tension drives.

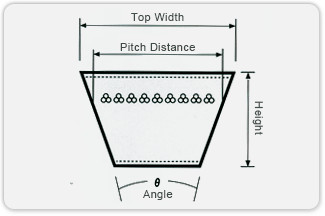

Sections one
| Type
|
Top Width
mm
|
Height
mm |
Length Range
mm
|
Angle | |
| Cogged | Non-cogged | ||||
| ZX | 10 | 6 | 6 | 535-4550 | 40° |
| AX | 13 | 9 | 8 | 535-4550 | 40° |
| BX | 17 | 11 | 10 | 535-4550 | 40° |
| CX | 22 | 14 | 13 | 535-4550 | 40° |
| DX | 32 | 19 | 18 | 535-4550 | 40° |
Sections two
| Type
|
Top Width
mm
|
Height
mm |
Length Range
mm
|
Angle | |
| Raw edge Belt(cogged)
mm |
Raw edge Belt(non-cogged)
mm |
||||
| AV-10 | 10 | 8 | 7.5 | 535-4550 | 40° |
| AV-13 | 13 | 9 | 8.5 | 535-4550 | 40° |
| AV-15 | 15 | 11 | 9.5 | 535-4550 | 40° |
| AV-17 | 16.5 | 11 | 9.5 | 535-4550 | 40° |
| AV-22 | 22 | 13 | – | 535-4550 | 40° |
Properties and Advantages
Greater horsepower than classical belt
High grade engineered rubber
Suitable for highest loads for laminated type
20-30% increased power ratings for laminated type
Temperature range from -50℃to +120℃
Static conductive to ISO1813
Oil, heat, ozone, and abrasion resistant
Applications
Fans, Pumps, Blenders, Milling plants, Special machines
Lathes, drilling machines, Grinding machines
Generators
Water pumps
Structure
Outside fabric: Polyester cotton canvas
Tensile member: Polyester hard cord
Top rubber: CR
Buffer Rubber: CR
Bottom Rubber: CR
